Molybdenum’s Role in Ultra-Fast Computing: The Metal Behind the Speed

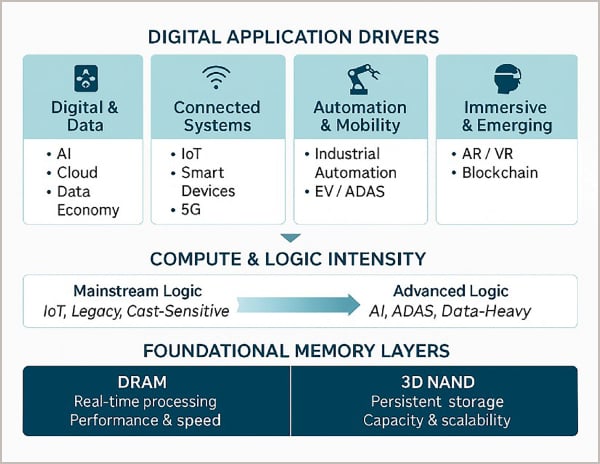

As the world races toward faster, smarter, and more connected technologies, the demand for ultra-fast computing is reshaping the semiconductor landscape. From AI and autonomous systems to 5G and edge computing, modern applications are generating massive volumes of data that must be processed, transmitted, and stored with unprecedented speed and reliability.
To keep up, we need advanced logic devices, the brains behind modern computing. These chips are evolving rapidly to deliver greater power and speed. Innovations like smaller transistors, new design architectures, and high-performance materials have already pushed performance boundaries.
As we scale below the 10 nm threshold and embrace 3D architectures like gate-all-around (GAA) transistors and backside power delivery, chip manufacturing becomes significantly more complex. New metals are being introduced to reduce wiring delays and improve reliability, and at the heart of this transformation is a surprising hero: molybdenum.

Why Molybdenum?
Traditionally, materials like tungsten (W) and copper (Cu) have been used in semiconductor interconnects. But as device geometry shrinks and performance requirements soar, these materials are hitting their limits. Molybdenum (Mo) is a promising metal for contacts and local interconnects because it offers a combination of low resistivity, high melting point, excellent thermal and chemical stability, and good electromigration resistance. It also is barrierless. This makes molybdenum well suited for advanced nodes, where traditional materials like Cu and W face scaling limitations.
With a set of properties that make it ideal for next-generation logic devices, molybdenum offers:
-
Lower resistivity at nanoscale: molybdenum offers up to 30% lower resistivity than tungsten in thin films, enabling faster signal transmission and reduced power loss.
-
Barrierless integration: Unlike tungsten and copper, molybdenum doesn’t require a barrier layer to prevent diffusion, simplifying manufacturing and improving yield.
- Scalability: molybdenum supports high aspect ratio features and 3D architectures like gate-all-around (GAA) transistors and backside power, which are essential for advanced logic chips.
Unlike copper and tungsten, molybdenum does not require a liner between itself and the dielectric because it forms a stable, low-resistance interface with the dielectric, and its high melting point and resistance to oxidation enables its direct deposition and integration. The lower resistance in the interconnects means that electrical signals can travel faster through the structure – reducing wiring delays and improving reliability. This is essential for high-speed data processing and retrieval, which are critical for the performance of logic devices.
Overall, molybdenum offers a balance of conductivity, scalability, and process simplicity. Its ability to perform without barrier layers and maintain low resistivity in thin films makes it a strong candidate for next-gen logic devices.
| Cu Copper | W Tungsten | Mo Molybdenum | |
| Bulk Resistivity (μΩ-cm) | Very low (~1.68 µΩ·cm) | Higher (~5.6 µΩ·cm) | Moderate (~5.3 µΩ·cm) |
| Thin Film Resistivity | High in small features due to scattering | High in nanoscale features | Lower than W in small features |
| Barrier Layer Requirement | Requires barrier (e.g.TaN) | Requires barrier (e.g.TiN) | No barrier needed |
| Scalability to Advanced Nodes | Challenging below 10 nm | Used but reaching limits | Highly scalable |
| Deposition Method | Damascene | CVD/ALD | ALD, CVD, Selective ALD |
| Thermal Conductivity (W/m-K) | 400 | 170 | 138 |
| Mean-Free Path Suitability | Too long for nanoscale | Long: resistivity increases | Shorter: ideal for nanoscale |
| Corrosion Resistance | Moderate; needs protection | Good | Requires tailored CMP/etch |
| Industry Trend | Being phased out at local interconnects | Being phased out at contacts and vias | Emerging as successor to W and CU |
Scaling Interconnects with Molybdenum

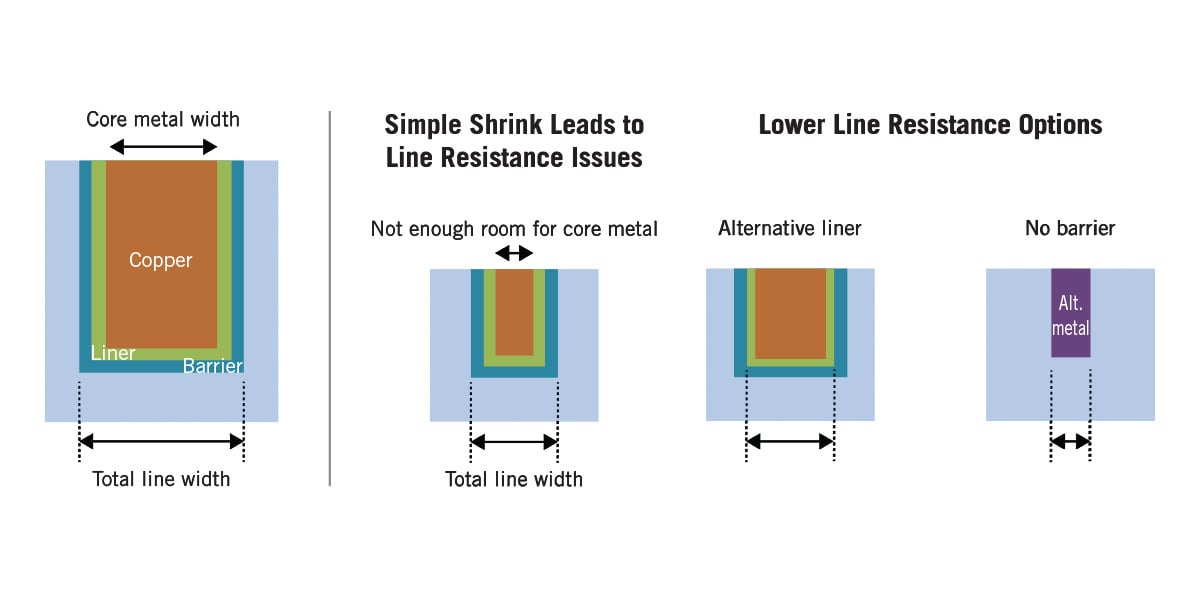

As chip dimensions shrink, wires that connect transistors on a chip require new metallurgies with lower resistivity to avoid signal delays and improve reliability. Copper has long been the preferred metal for interconnect wiring, but in recent years, interconnects have had to scale down in size due to shrinking dimensions resulting in new limitations for Cu. As chip dimensions shrink, copper's resistivity increases, leading to higher resistance and power consumption in devices.
Copper interconnects also use liner and barrier layers to prevent copper diffusion and enhance adhesion. At smaller scales, these added layers increasingly contribute to the overall resistance and volume of the interconnect creating even more challenges for device makers.
Today, traditional copper interconnects are hitting a major barrier to continued scaling, a barrier known as the RC challenge. The RC challenge refers to the increasing resistance (R) and capacitance (C) in interconnects as devices scale down, which leads to signal delay, power loss, and performance degradation in integrated circuits.
Engineers are now introducing materials such as cobalt, molybdenum, and ruthenium in select contacts and local interconnect layers, where copper’s liner and barrier requirements dominate resistance and limit further scaling. Precursors for these materials and the processes used to deposit these films are still maturing but companies like Entegris are at the forefront of these innovations. Once a distant vision, the molybdenum transition is now a reality.
As logic devices continue to scale, it’s important to distinguish where new metals can realistically be introduced and where fundamental architectural constraints remain.
While copper faces increasing resistance challenges at extremely small dimensions, it is not expected to be replaced at tight-pitch interconnect (TPI) levels such as Metal 1 through Metal 4. These layers sit adjacent to SRAM structures, most critically the L1 cache, where low resistance is essential for performance.
The critical dimension (CD) of SRAM features is four to five times larger than the smallest CDs at TPI, driving a strong requirement for very low sheet resistance (Rs). Alternative metals such as molybdenum, tungsten, and iridium simply cannot meet this requirement at those levels today.
Even as advanced packaging technologies pull L2 and L3 caches off chip using hybrid bonding, L1 cache is expected to remain on chip for the foreseeable future, reinforcing copper’s continued role in these critical layers.
Precision Manufacturing with Mo
Molybdenum is emerging as a key replacement for tungsten and a selective enabler of next-generation logic integration. Thanks to innovations in Atomic Layer Deposition (ALD), Area Selective Deposition (ASD) and Chemical Mechanical Planarization (CMP), molybdenum can be deposited with atomic-level precision. This ensures defect-free contacts and interconnects and streamlined process steps making it viable for high-volume manufacturing.
Real-World Impact
From smartphones and data centers to AI accelerators and autonomous vehicles, molybdenum is helping power the next wave of ultra-fast computing. Its unique properties make it a strategic upgrade for select logic layers where legacy materials no longer scale effectively.
To learn more about Entegris moly offerings visit https://entegris.info/moly
Learn how Entegris is enabling molybdenum integration for advanced logic needs:
As tungsten is displaced and molybdenum adoption expands across contacts, vias, backside power delivery, and selective prefilling schemes, process control, CMP performance, and materials purity become decisive differentiators. Entegris is enabling these transitions by supporting the precise integration of molybdenum where it delivers the greatest impact—without compromising system-level performance.
