From Lab to Fab: Capturing the Uncatchable in CMP Filtration

As CMP process windows continue to narrow across FEOL, device integration, interconnect planarization, and advanced packaging applications, filtration is being asked to do more than simply remove contaminants. Increasingly, it must preserve slurry performance, maintain particle stability, and control defect-generating populations throughout the slurry lifecycle.

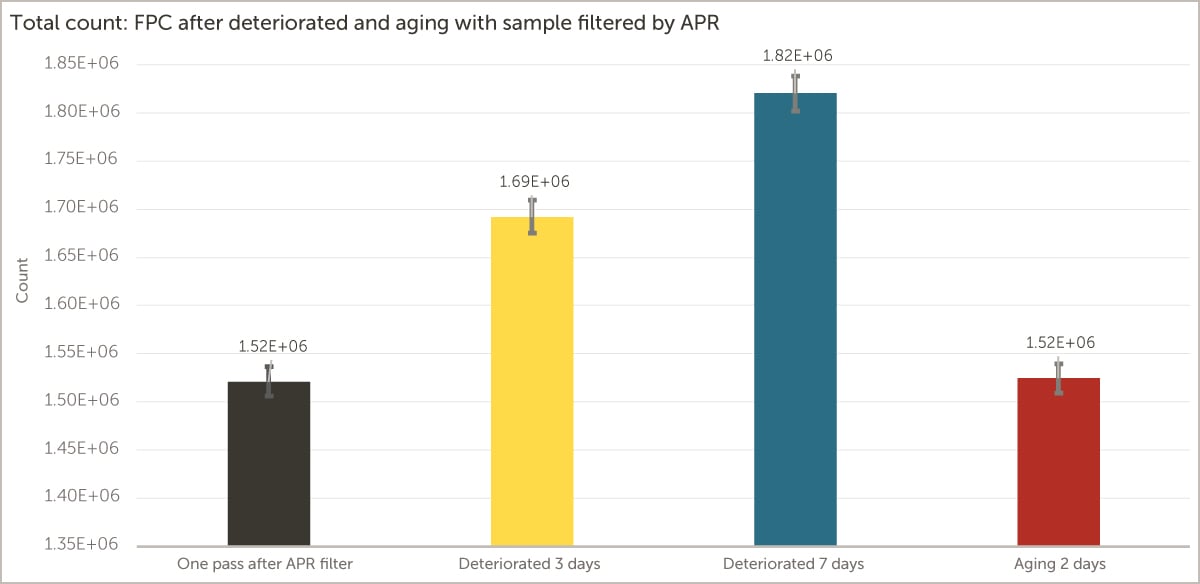

The study highlights how particle populations can evolve throughout the slurry delivery system. Research presented at the ICPT CMP conference demonstrated that particle populations can change during circulation even when traditional particle-size measurements suggest the slurry remains stable. These observations provide another perspective on how particle behavior can evolve between bulk delivery and the wafer.

The SEM images above demonstrate that planarization and polishing performance depends on tightly controlled working size particles with larger or smaller deviations becoming increasingly yield limiting.

Three Observations from the Study

The paper explores three related aspects of CMP filtration and particle behavior.

• Particle populations can evolve throughout the slurry delivery system. The study evaluates how dilution, circulation, residence time, filtration, and mechanical handling influence the populations that ultimately reach the wafer. What arrives at the point of use may not be identical to what entered the system.

• Filtration performance depends on interactions between slurry chemistry, process conditions, and filter design. The work examines how variables such as flow conditions, concentration, and slurry composition influence retention behavior across different abrasive systems.

• Particle behavior must be evaluated across multiple size regimes. Large particles continue to be associated with scratches and defectivity, while fine particles are receiving greater attention as films, structures, and interfaces continue to scale across advanced CMP applications. The study explores how these populations respond differently to process conditions and filtration strategies.

One of the study's key findings is that effective CMP filtration is not simply achieved through tighter filtration. Across multiple slurry systems, optimized filtration balanced particle retention, hydraulic stability, and slurry integrity more effectively than aggressive filtration approaches. In several cases, overly tight filtration increased differential pressure and promoted particle aggregation, highlighting the importance of selecting filtration strategies that are compatible with the slurry formulation and process conditions.

Together, these observations provide a broader view of how slurry behavior and filtration interact across FEOL, device integration, interconnect planarization, and advanced packaging CMP processes. While polishing objectives, slurry chemistries, and defect sensitivities vary across these applications, each depends on understanding how particle populations evolve throughout the slurry lifecycle.

Rather than viewing filtration solely as a contamination-control step, the research provides a broader view of how filtration, slurry chemistry, and delivery conditions interact to influence particle behavior throughout the slurry lifecycle.

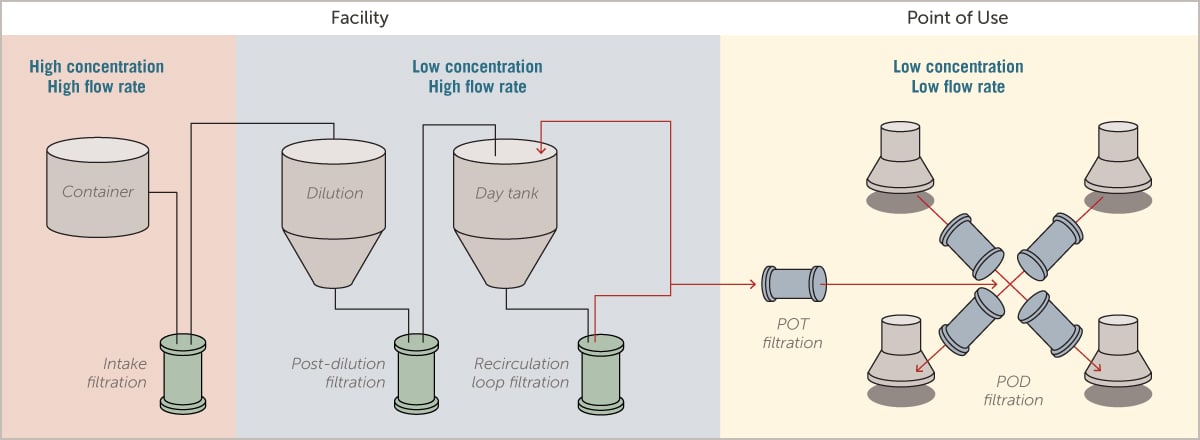

The delivery system provides the environment where particle populations evolve. Dilution, recirculation, filtration, residence time, and chemistry all influence the particles ultimately presented to the wafer. These interactions can differ significantly across abrasive systems and CMP applications.

Looking Beyond Large Particle Control

Large-particle control remains an important focus of CMP filtration, but the study also examines particle populations below 30 nm. As films, structures, and interfaces continue to scale across FEOL, device integration, interconnect planarization, and advanced packaging applications, understanding behavior across multiple particle-size regimes provides a broader view of slurry performance.

Download the Technical Paper

The full paper explores the data behind the three themes discussed here:

• Slurry evolution from bulk delivery to point of use

• The interactions between slurry chemistry, process conditions, and filtration performance

• Strategies for controlling both large-particle and fine-particle populations in advanced CMP applications
